KU6X TRS PCB Variations

From QST August 2018 pp. 32 - 35

Return to Home Page
page last updated 08/05/2018

This page has three PCB variations of the original John Hurst KU6X design presented in QST August 2018 pp. 32 - 35
“Versatile Transmit / Receive Switch and Active Antenna” with additional information available on John’s web page
https://ku6x.com/solid-state-tr-switch-additional-info/

The three designs are:
A new through hole version
A new SMT version
A new Power Tee

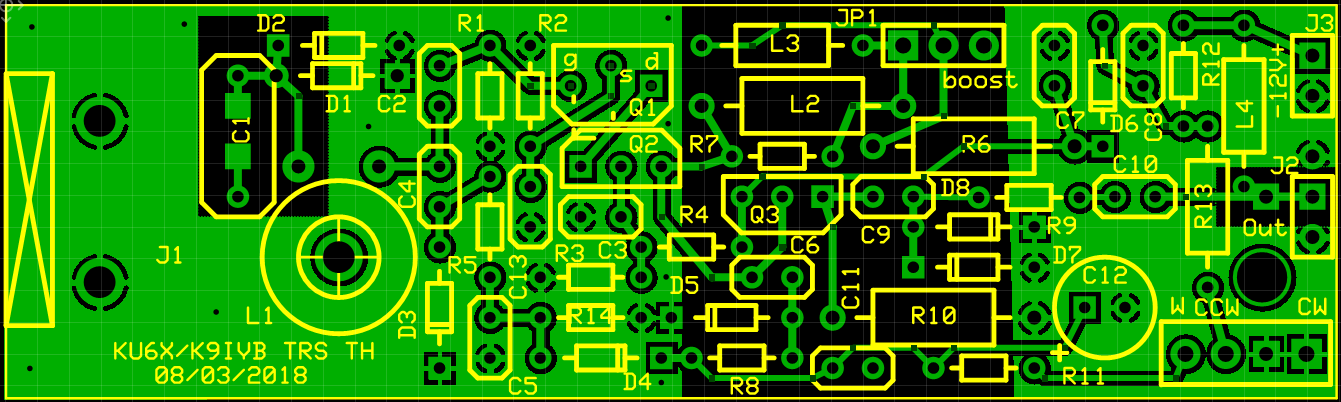

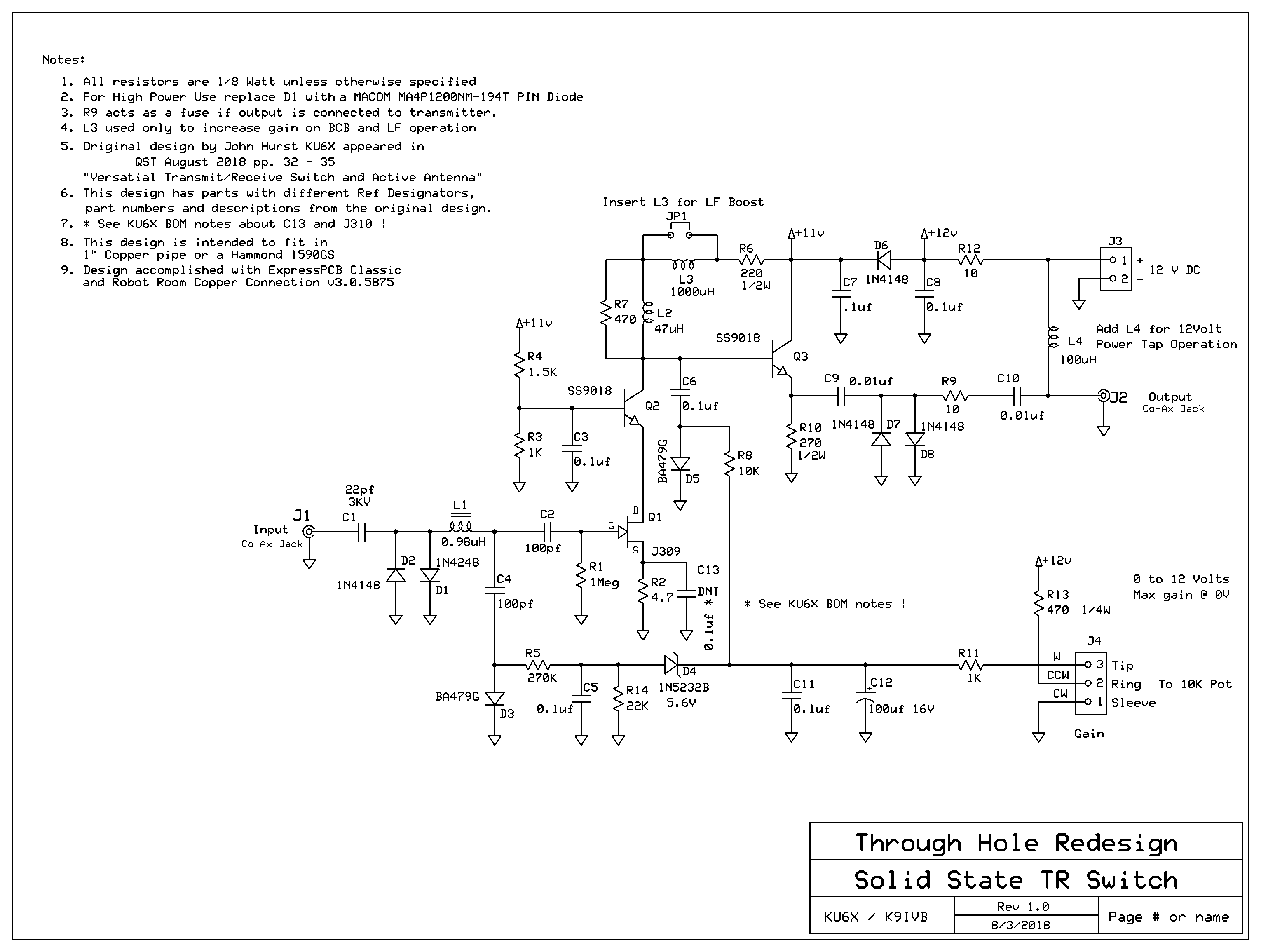

KU6X / K9IVB TRS Through Hole

Document package in zip format
TRS TH Docs.zip

This design is shorter than the original [ 3.31 x 0.98 inches ]
and can be ordered directly from OSHPark. [3 boards @ $16.20 ppd]

Direct link to buy PCB from OSHPark
https://oshpark.com/shared_projects/TYqOS3Om

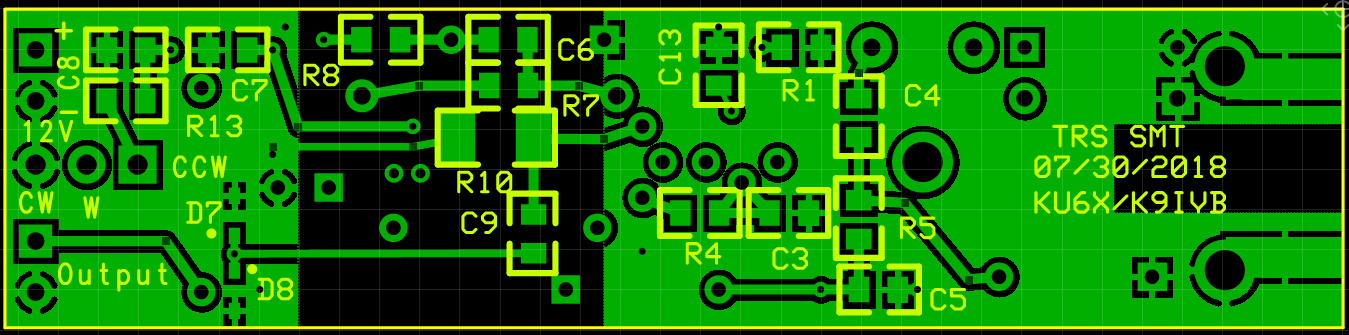

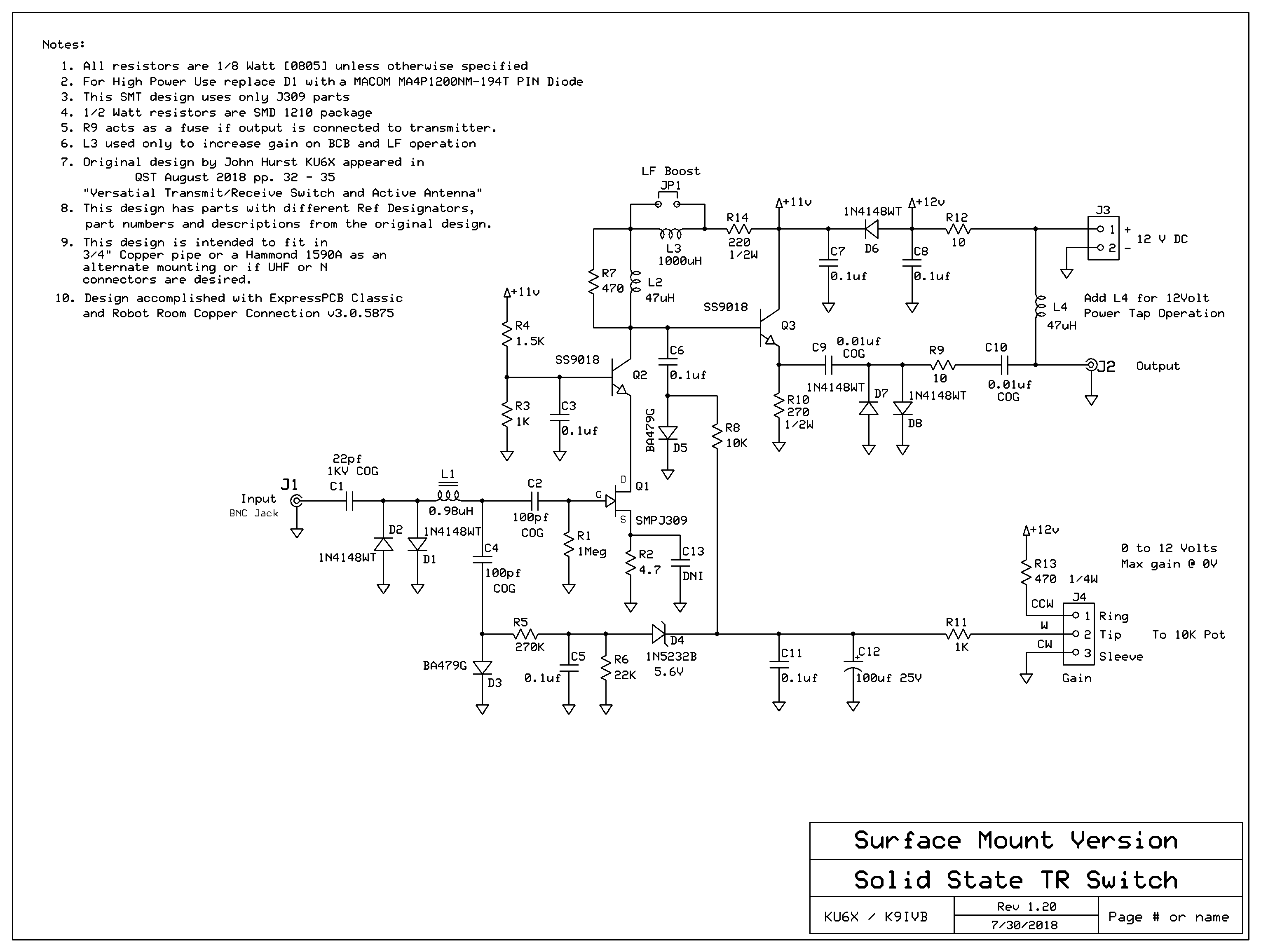

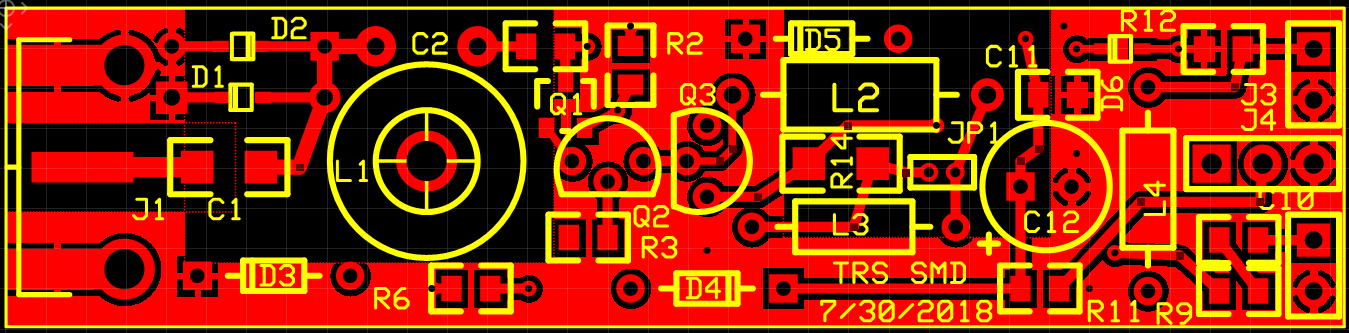

KU6X / K9IVB TRS Surface Mount

Document package in zip format
TRS SMT Docs.zip

This design is smaller than the original [ 2.63 x 0.63 inches ] and uses a BNC connector,
fits in 3/4 inch copper pipe or a Hammond 1590A housing.
The board can be ordered directly from OSHPark. [3 boards @ $8.30 ppd]

Direct link to buy PCB from OSHPark
https://oshpark.com/shared_projects/M1rpbCW1

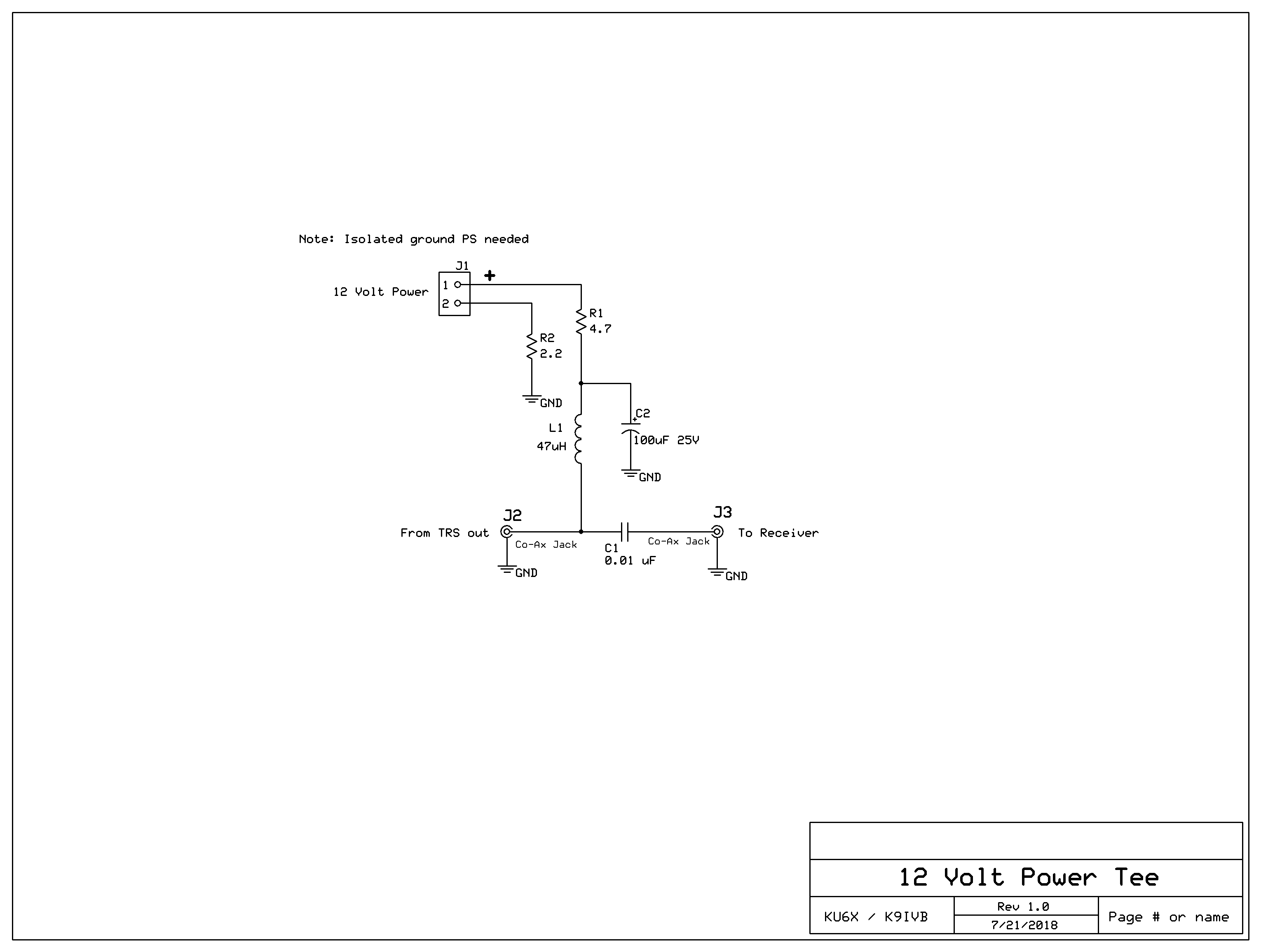

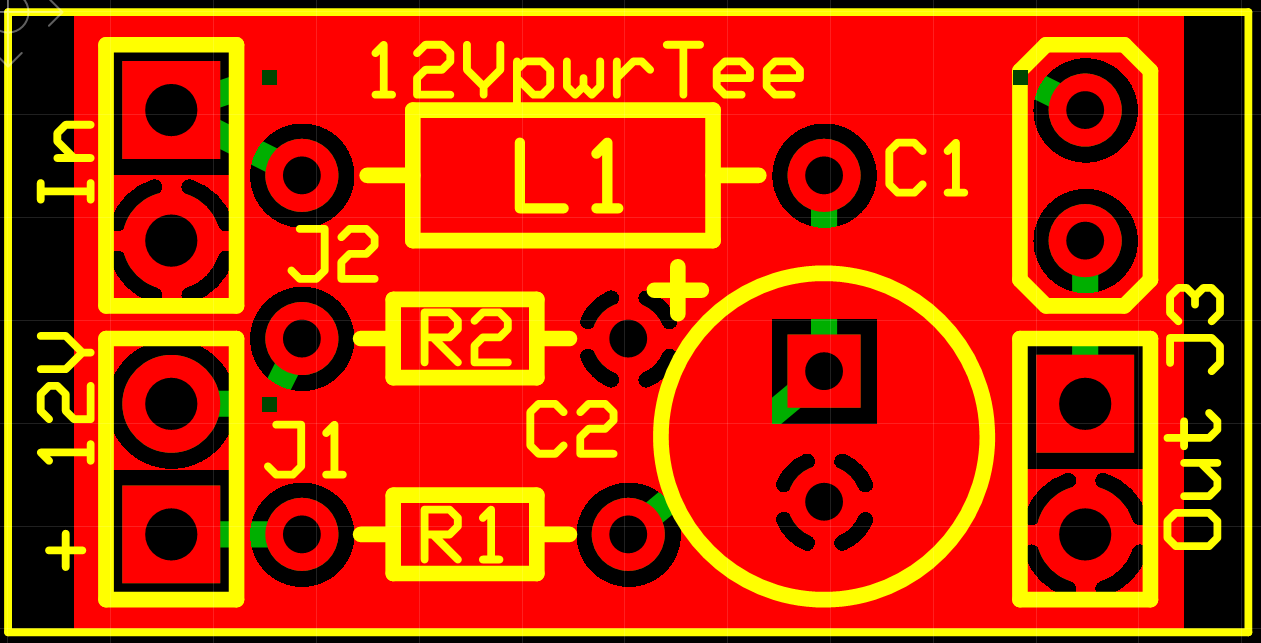

Power Tee

Document package in zip format
12V Power T Docs.zip

This design is smaller than the original [ 0.96 x 0.48 inches ]
and can be ordered directly from OSHPark. [3 boards @ $2.39 ppd]

Direct link to buy PCB from OSHPark
https://oshpark.com/shared_projects/jAsiMWjj
