Munin 3

100W HF Power Amplifier

Return to Home Page
page last updated 01/13/2018

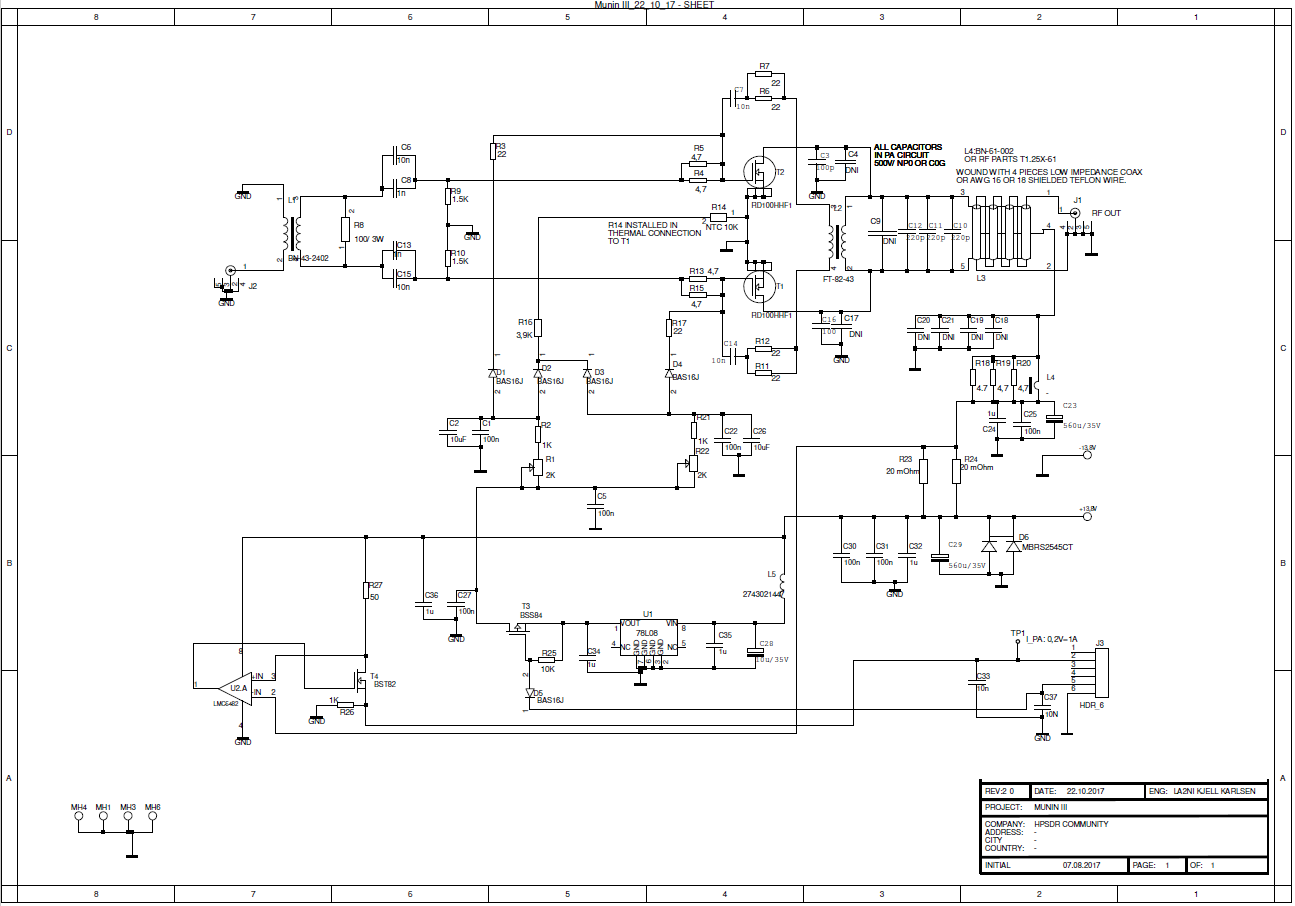

Munin IIIsch_22_10_17.pdf

* * * * * *

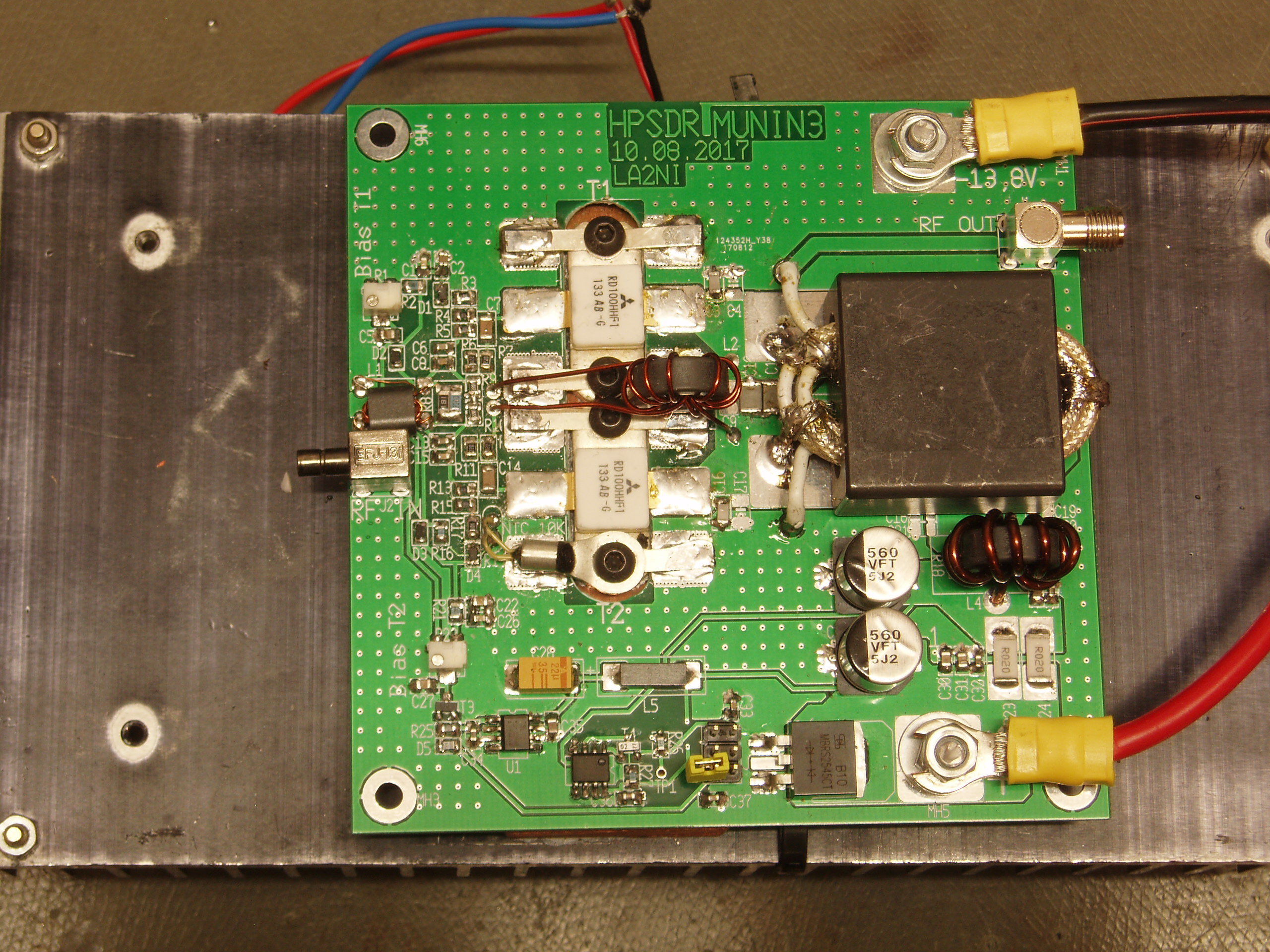

Kjell's Munin III

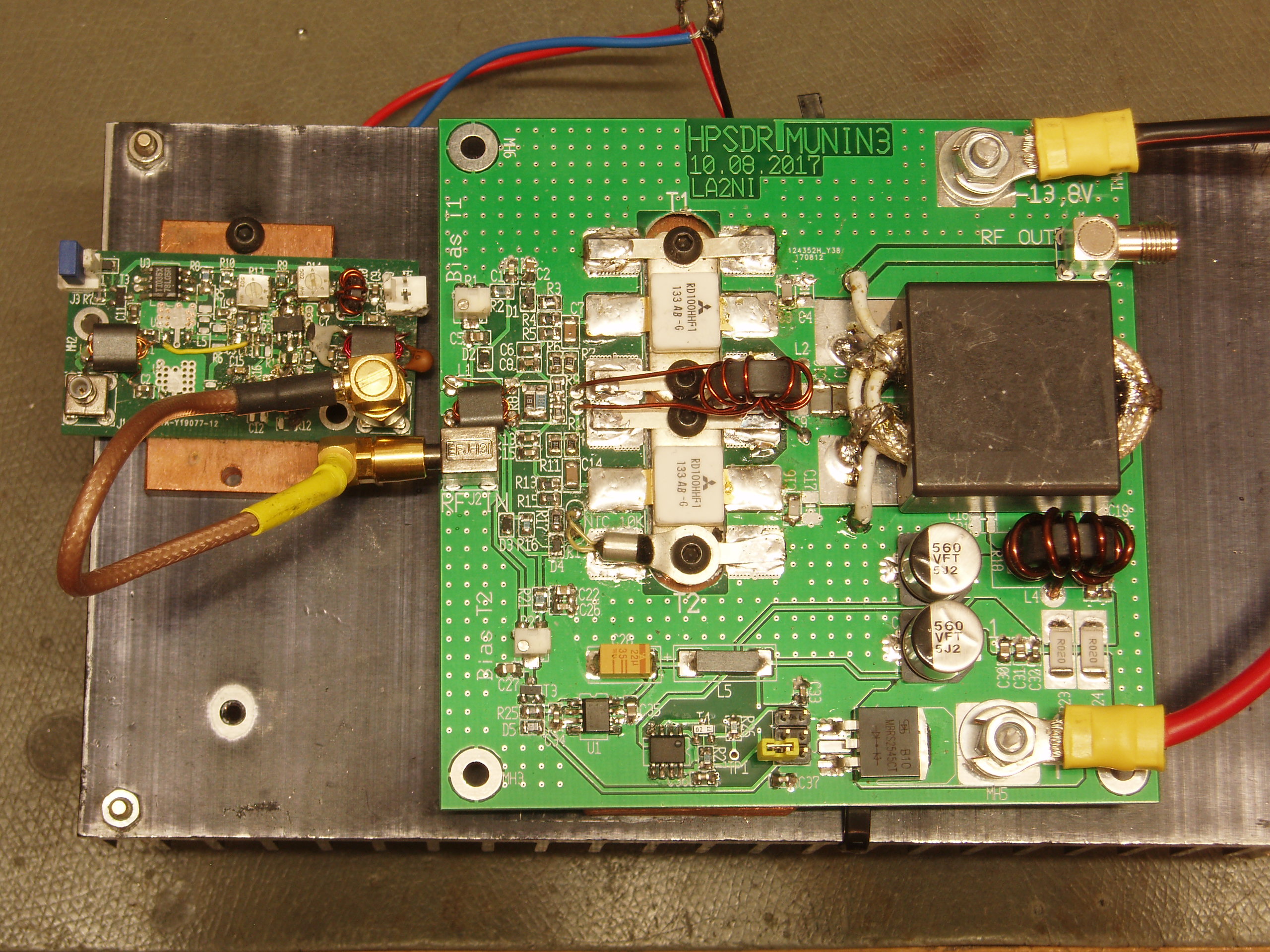

Kjell's Munin III with 5W driver board for testing

* * * * * *

Documentation [click on link to download]

Munin III - Silkscreen.pdf

Munin III - Cu Top.pdf

Munin III - Cu Bottom.pdf

* * * * * *

BOM has Mouser part numbers and other sourcing.

New Parts - BOM Revisions January 13, 2018

C2 and C26 now Mouser 81-GRM219R61E106KA2J [0805]

R8 alternate:
There was a question of the power rating for R8. I see that I have used 2 pcs 1206 220 Ohm in parallel on the prototype of Munin III. As the layout is for size 1812, I find that by using 3 pcs. 330 Ohm/1206 in parallel, Pn:71-CRCW1206330RFKEAH from Mouser should be perfect. They are 0,75 W each so for all that wants everything to be a bit overrated, this should be perfect! The resulting value for 3x330=110 Ohm is near enough. 73, Kjell

MUNIN III BOM_13_01_18.xls

MUNIN III BOM_22_10_17.xls

MUNIN III BOM_22_10_17.ods

* * * * * *

Munin III_Gerber-173148456961706160 Don-5.zip

Kjell's Comments are from HPSDR Reflector emails and describe his design and performance.
Kjell Karlson Comments.pdf

* * * * * *

Some Heatsink Suggestions:

Munin II Heatsink was made from a 4.230"w x 1.050"h extrusion and was 6.3" long
http://www.heatsinkusa.com/4-230-wide-extruded-aluminum-heatsink/
Munin III is about 100mm square [~3.94" sq] so a 4" part
from the same extrusion would now be $5.76 + shipping

Another from Heatsink USA with much higher fins [2.85"] 3.945" x 4" would be $13.08 + shipping.
http://www.heatsinkusa.com/3-945-wide-extruded-aluminum-heatsink/


https://www.amazon.com/DealMux-110mm-Silver-Aluminium-Cooling/

https://www.walmart.com/ip/120mm-x-100mm-x-18mm-Aluminum-Slotted-Cooling-Fin-Heatsink-Silver-Tone/

* * * * * *

link to Munin2
