Audio Processors CH11 & 12
Construction Pictures

From: Microcontroller Projects for Amateur Radio by Jack Purdum, W8TEE

Return to Audio Processors
page last updated 08/15/2021

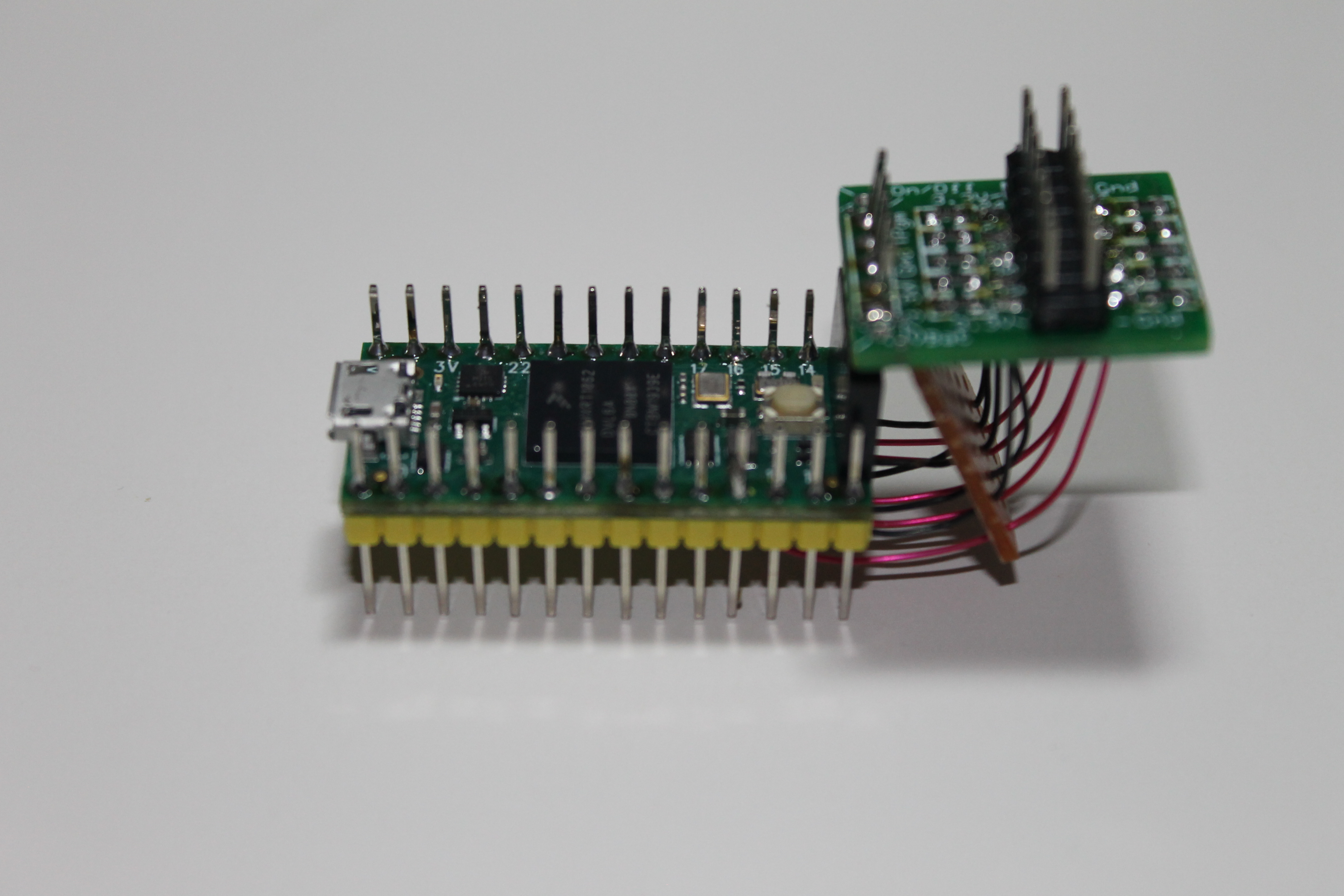

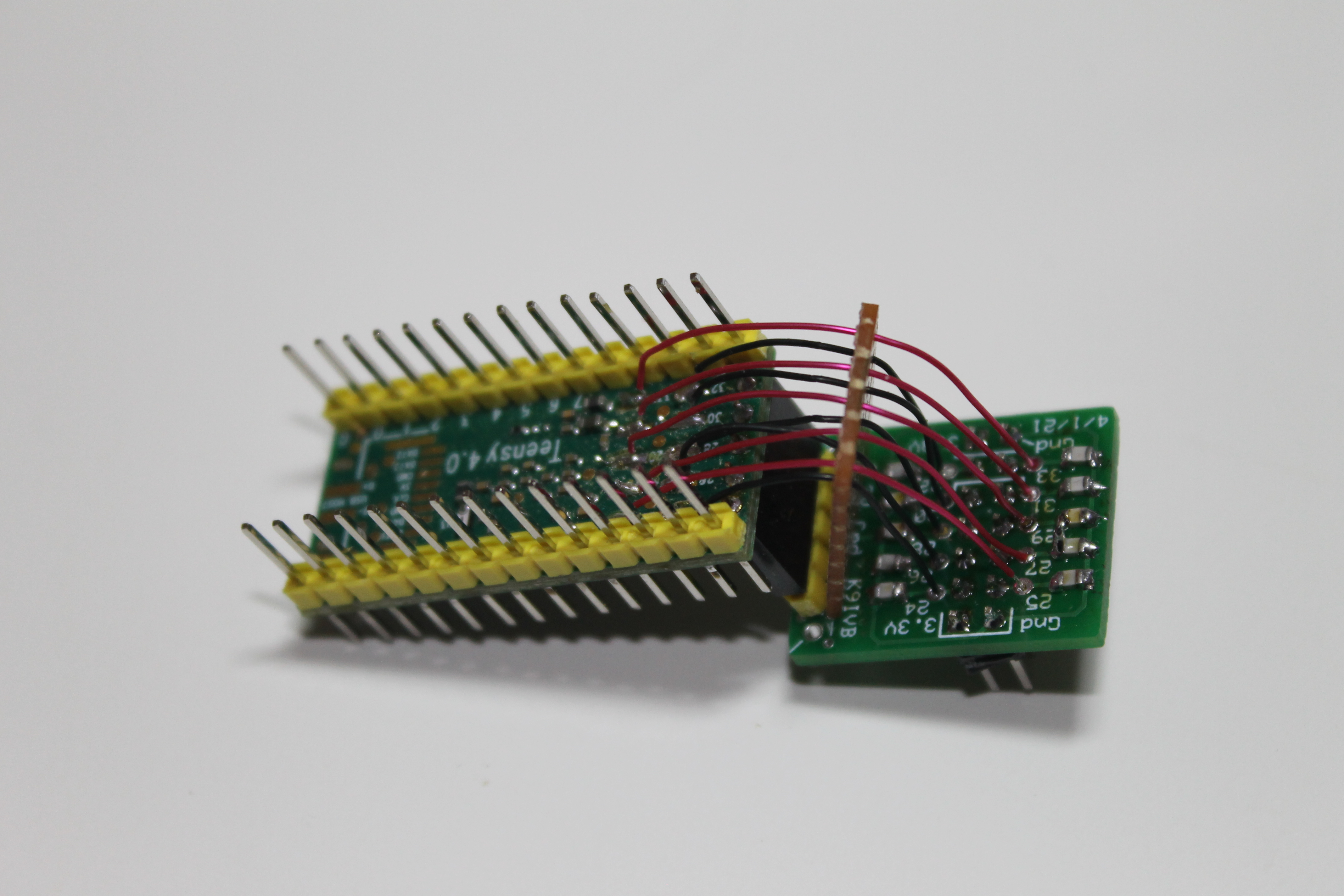

Teensy 4.0 with extender
Actually destroyed this Teensy and have a new one.  Will eliminate the socket to lower the extender

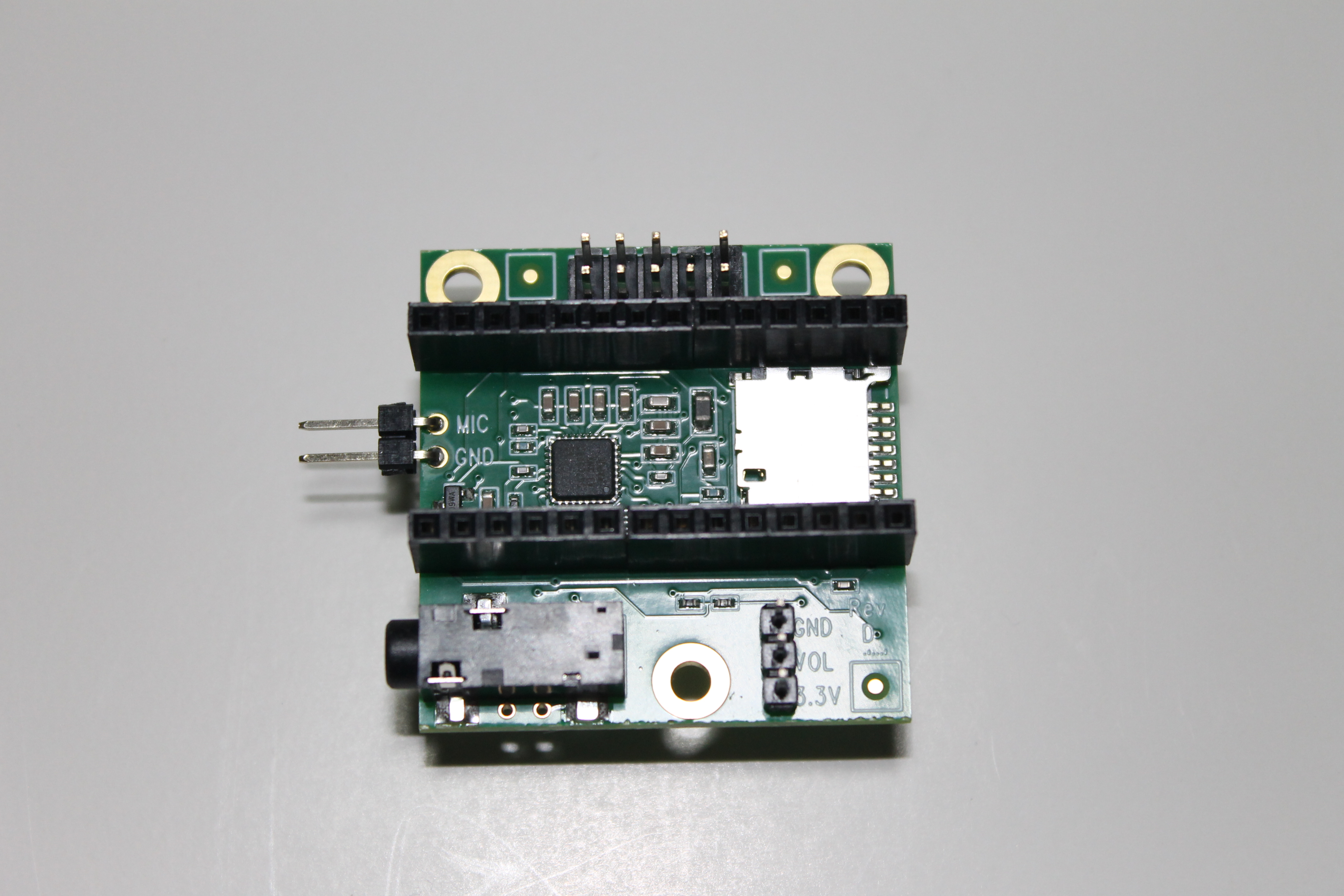

Audio board with pins & sockets

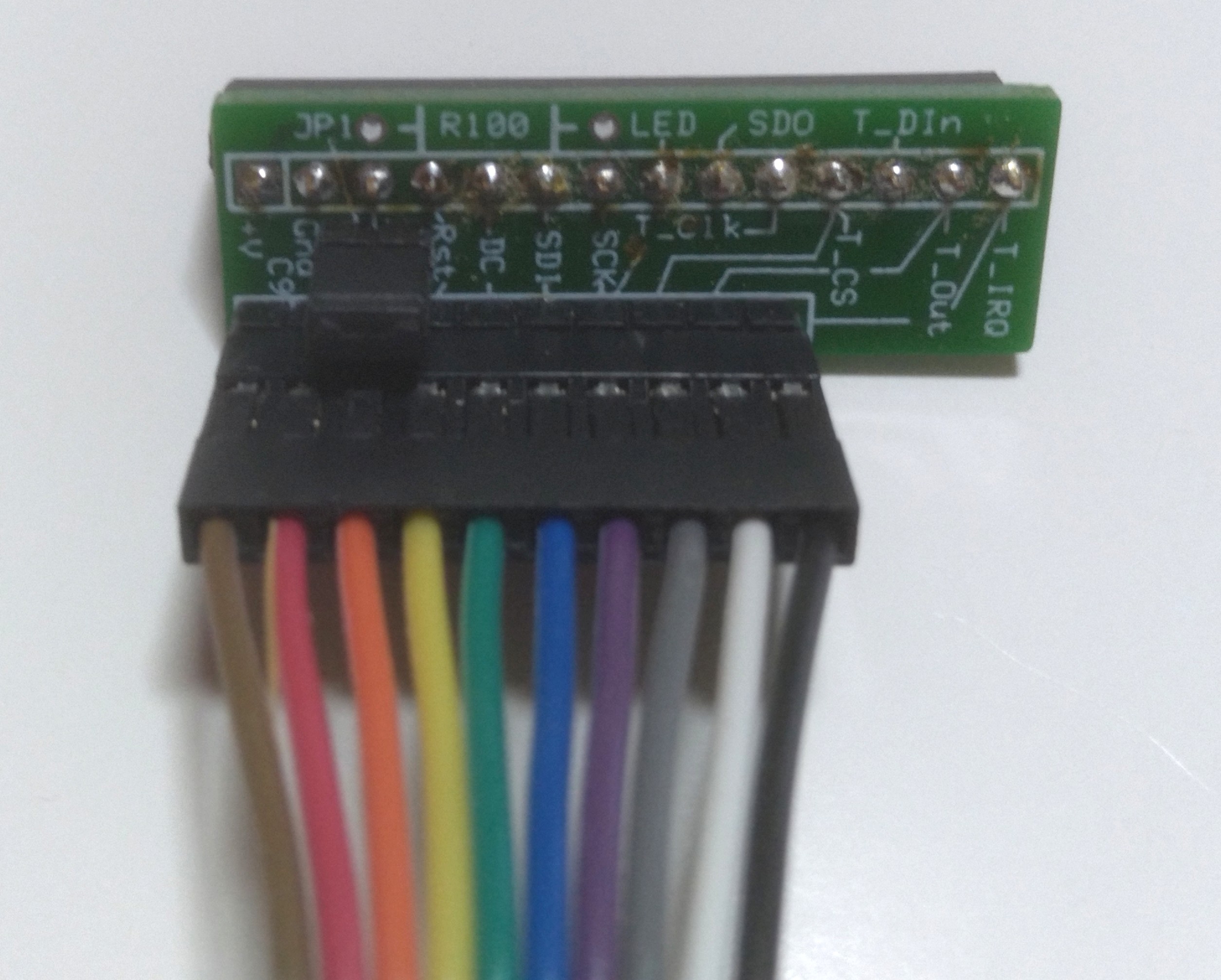

Display Board

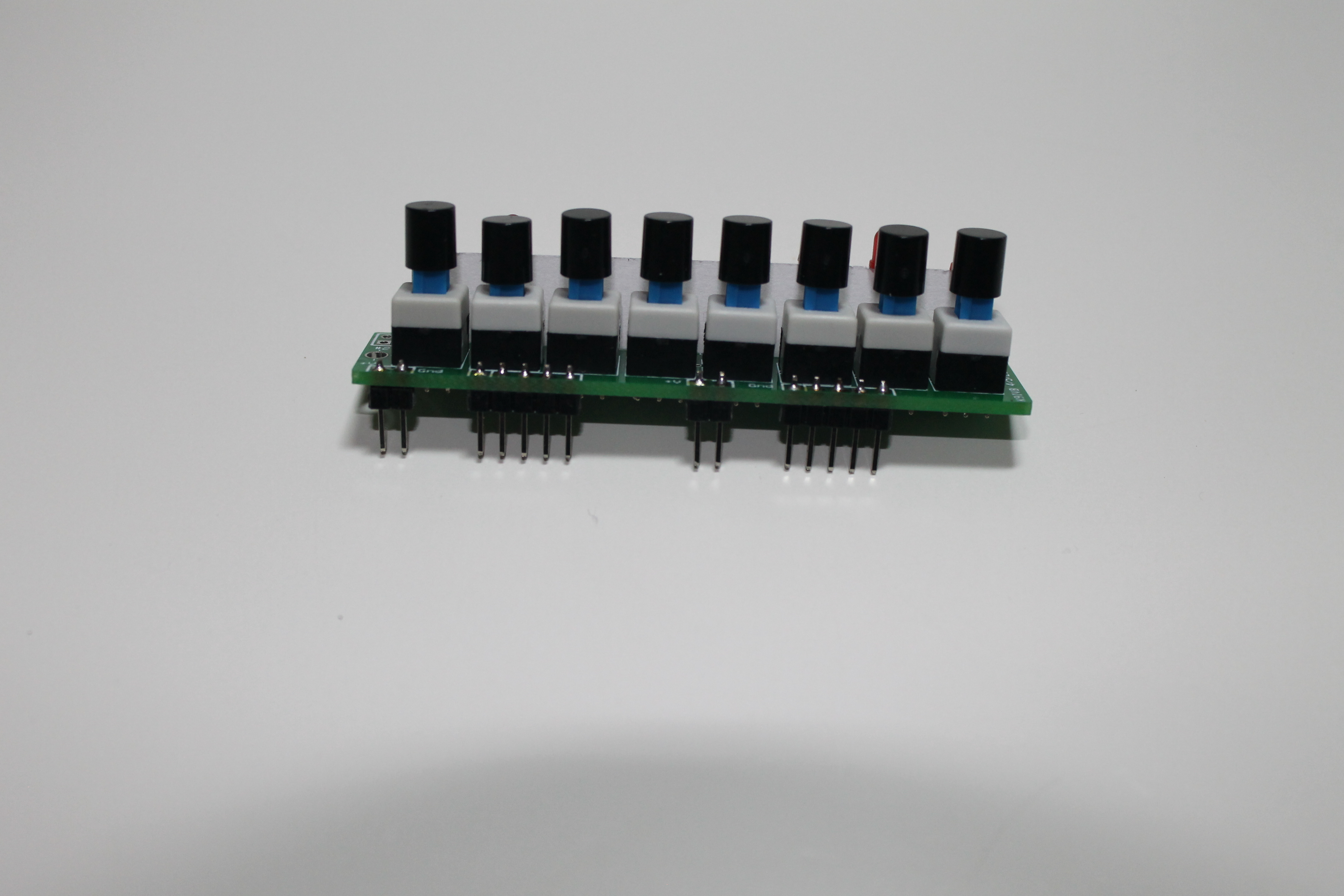

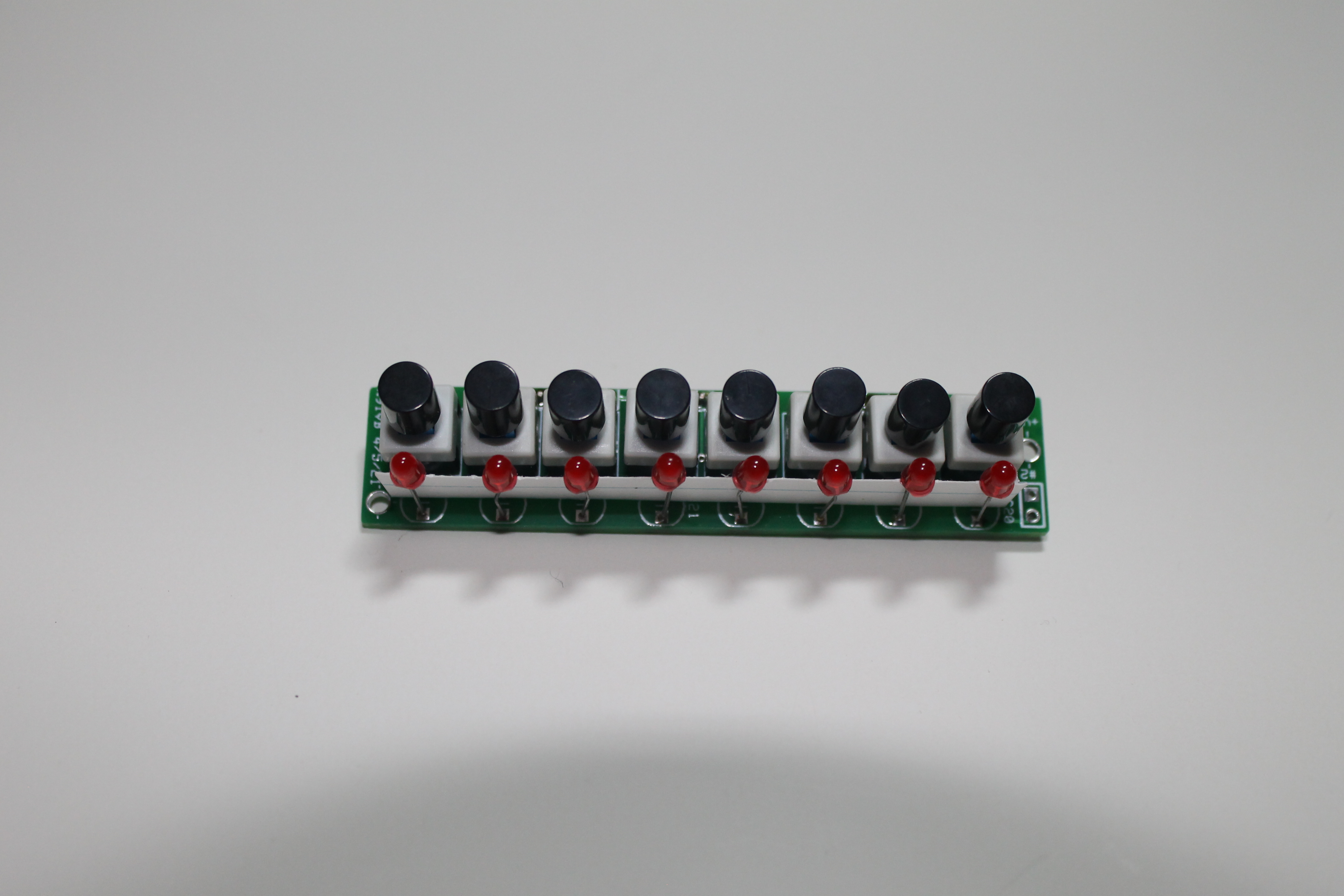

8 Button Board  White is a paper spacer to align LED's & keep at same height

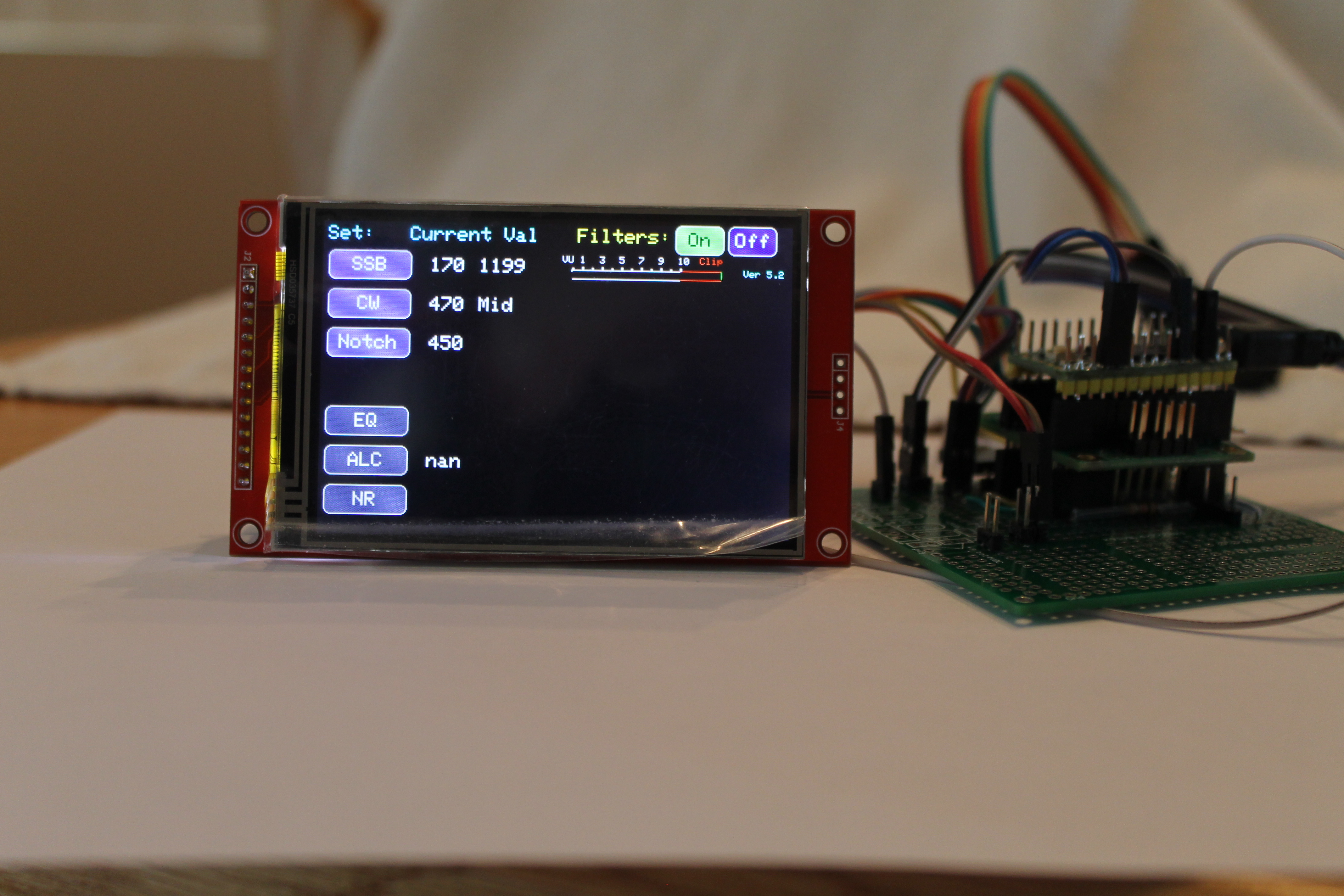

Current hardware


Yes I know that I need better lighting.
