Munin 2

100W HF Power Amplifier

page last updated 06/16/2015

Kjell's latest updates on Output Transformers & revised Schematic May 7, 2015

Everything in one tidy ZIP file

Schematic only in pdf format

or if you prefer direct links to HamSDR

ICOM Transformer   Schematic  &   Doc File

Group Buy and Build Information

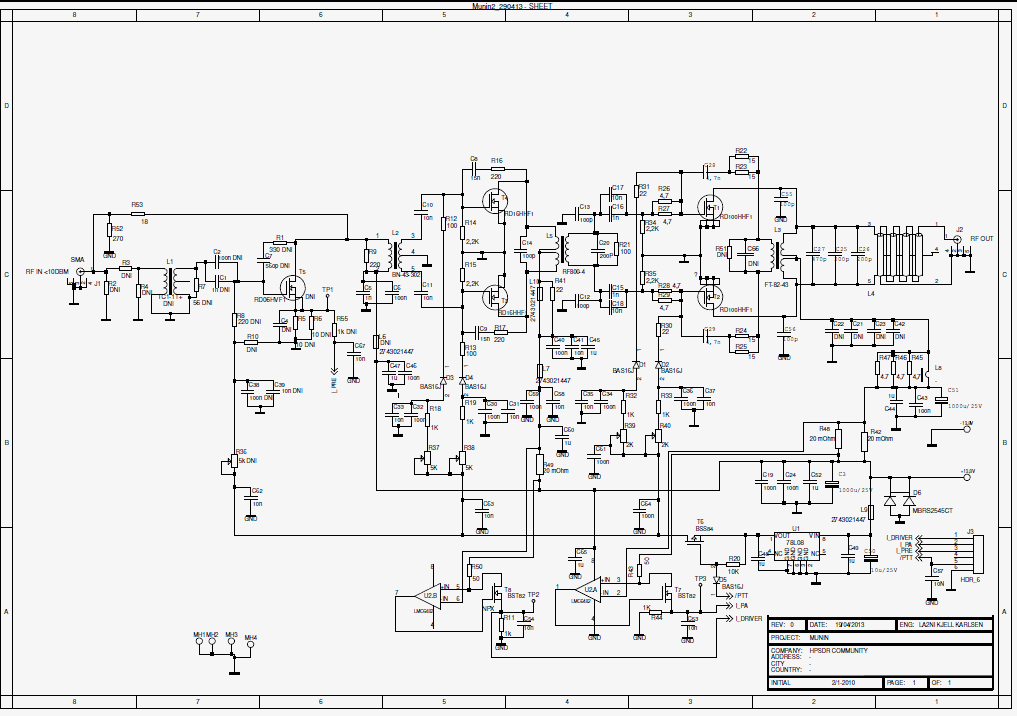

Original Schematic

* * * * * *

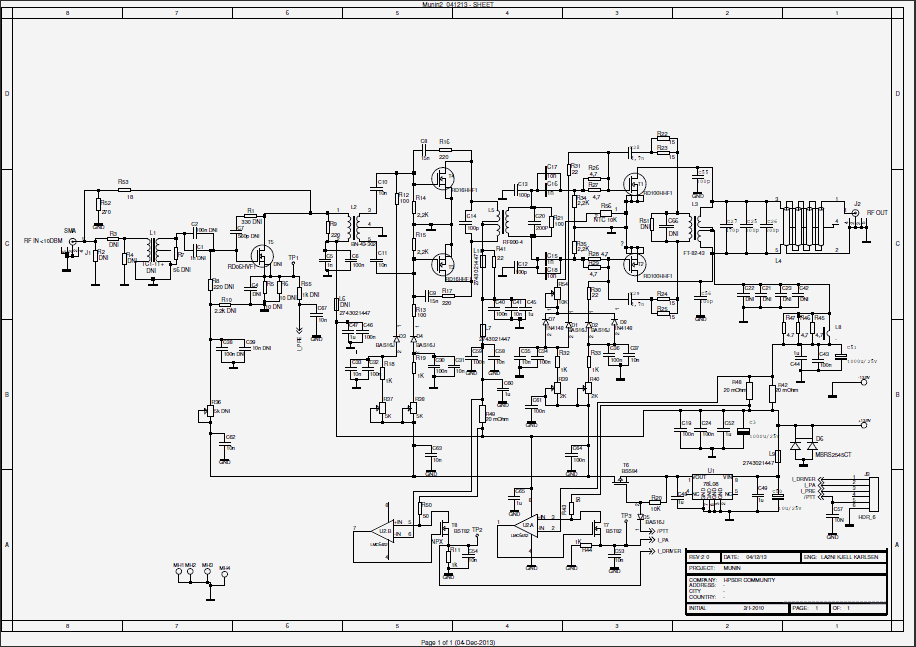

New Schematic for 24VDC operation 12/5/2013

Munin2_041213.pdf
New Munin Schematic Details.pdf

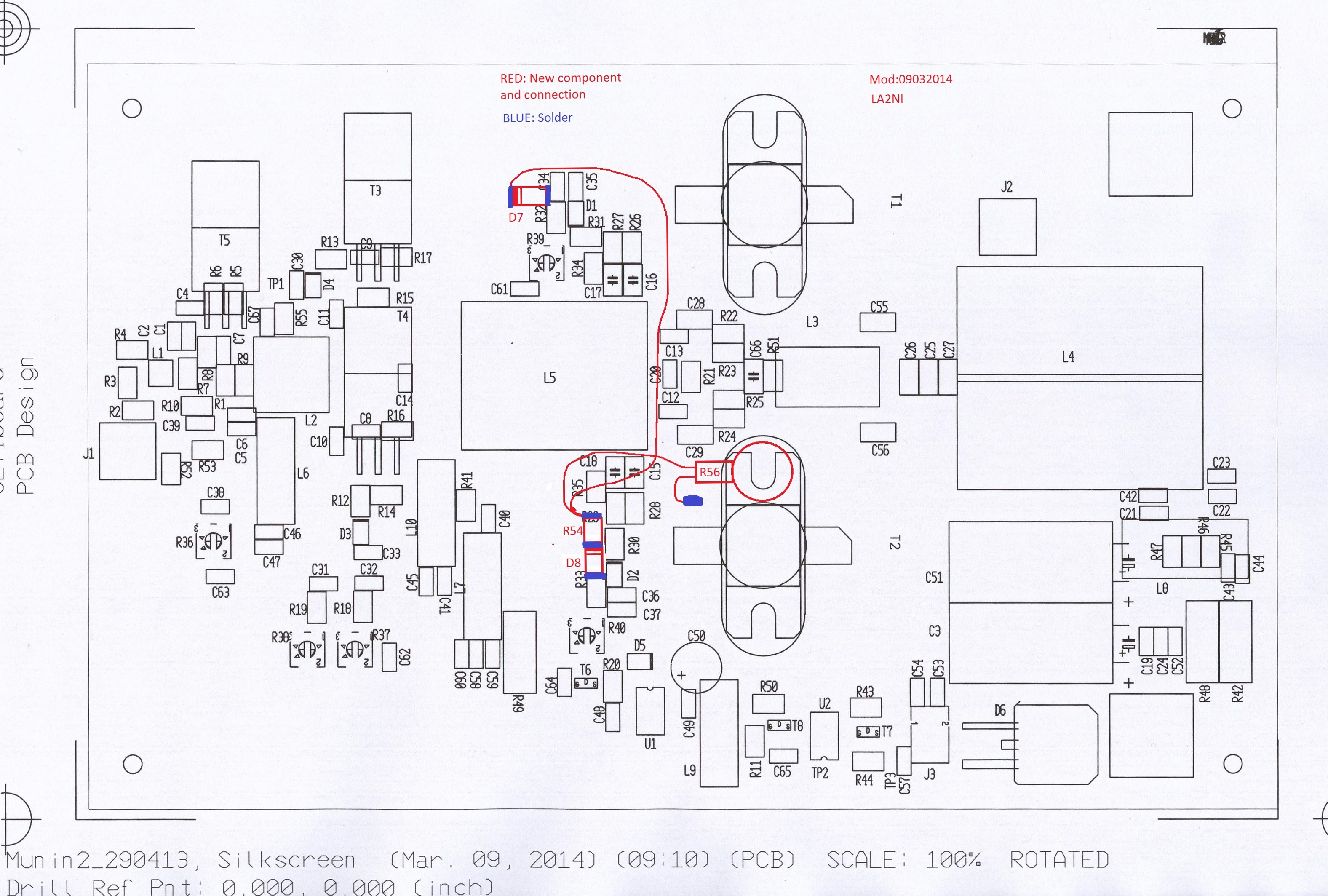

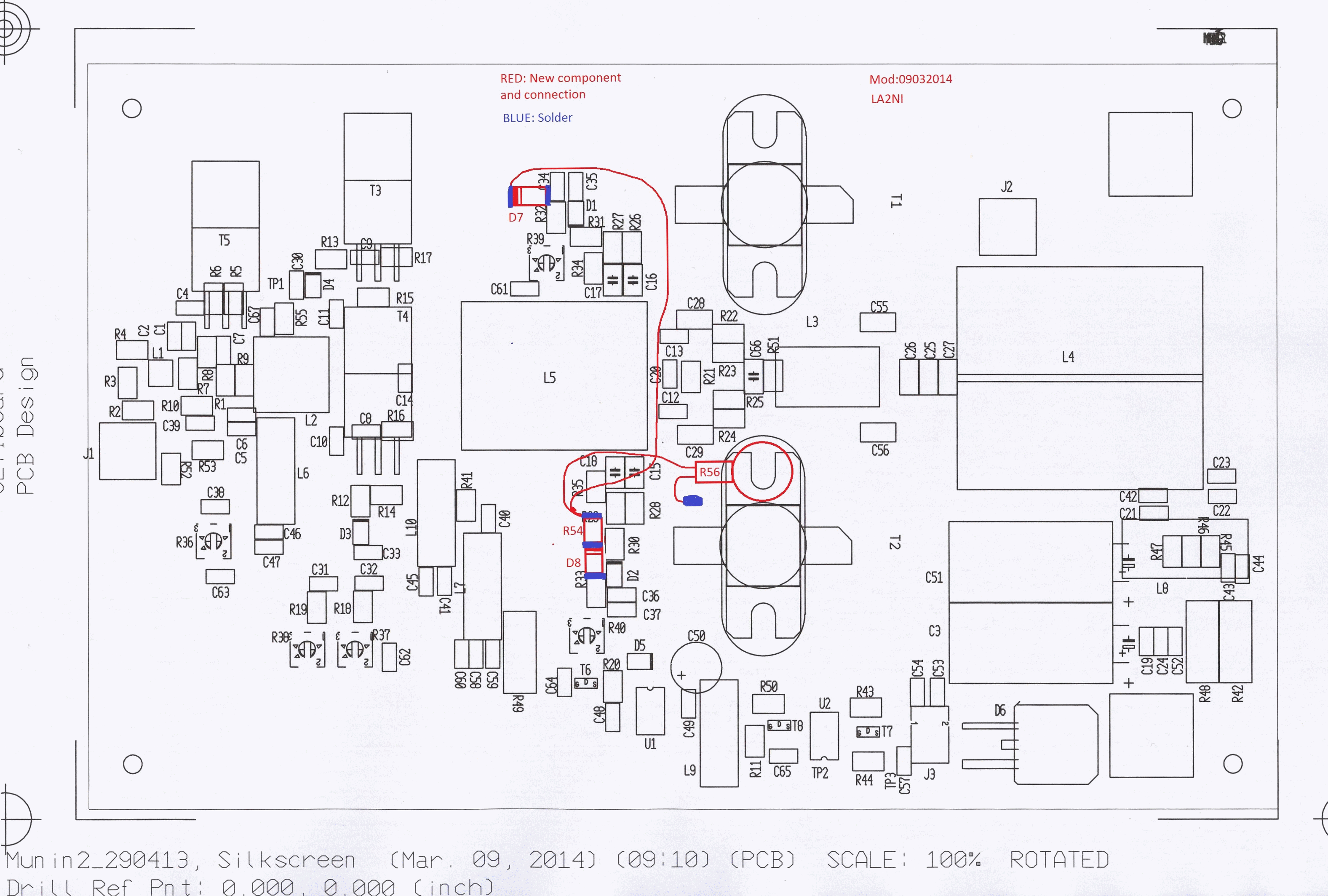

New revisions to eliminate the pot 09032014
New Bias Circuit For Munin2.pdf



* * * * * *

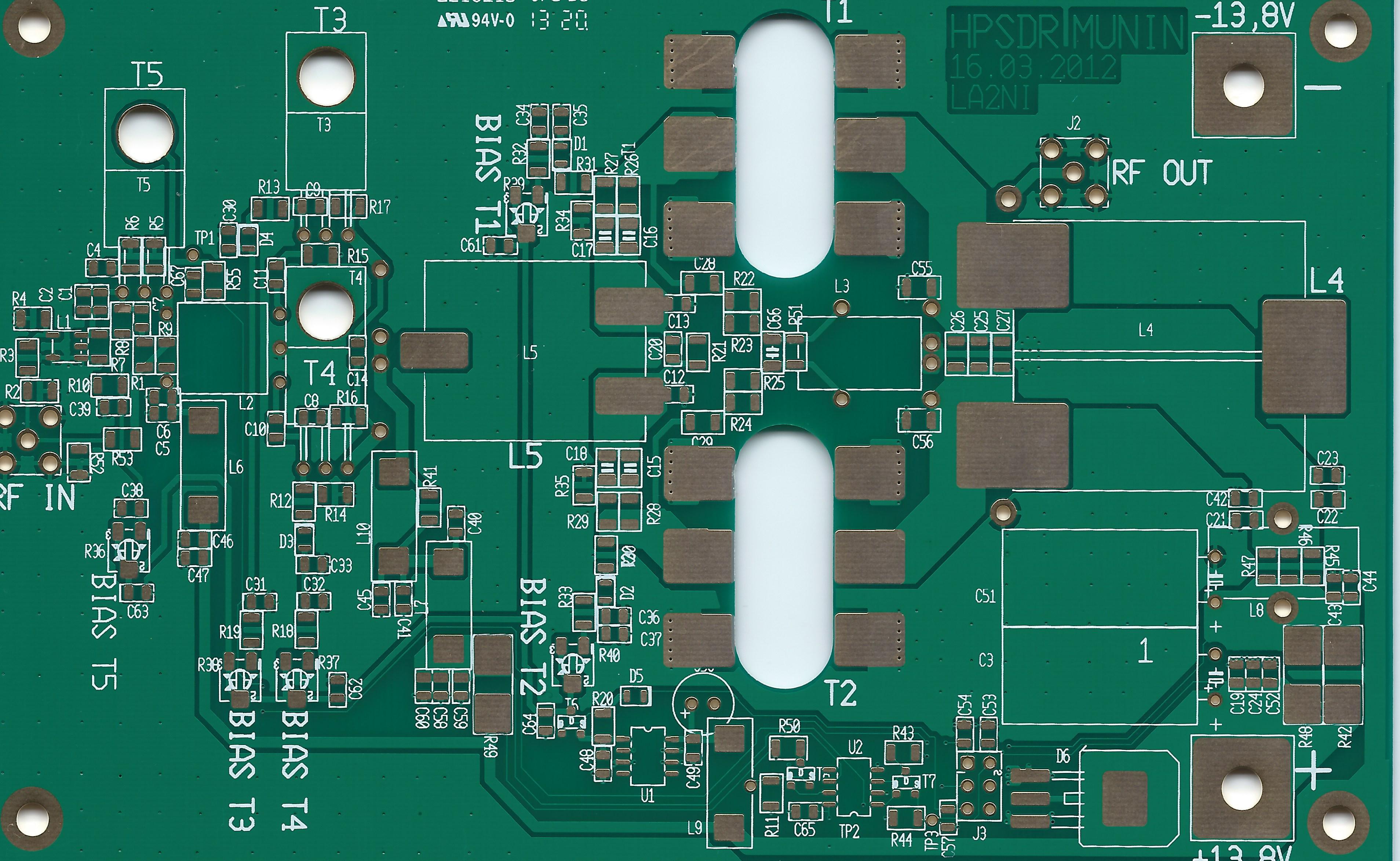

Just the PCB no parts

Munin2_BOM_V9.0.xls
Note: Replace C25, C26 and C27 [200pf, 200pf, 470pf]
with four (4) 220pf 500V NPO/COG 1206
Mouser part # 581-12067A221J or 80-C1206C221JCG

Munin2_Part_Pick_Sheets_07042013.pdf

Component_Reference_Drawings_06122013.pdf

Munin2_General_Construction_Info_07052013.pdf

Munin_L4_Construction_With_ BN-61-002_06272013.pdf

Mounting_The_RD100HHF1.pdf

Munin2_Bias_Setup_08-18-2013.pdf

Heatsink_Drill_Table_06092013.pdf

Heatsink Drill Drawing-3.pdf
Note: If you are drilling your own heatsink and need a template use the version 3 drawing.
The Drill Table dimensions are correct on the "Heatsink_Drill_Table_06092013.pdf"
but the location of the "T1H" hole is low [Thanks to Mike KF4BQ for pointing this out]

Heat_Spreader_Drill_Drawing_06092113.pdf
Note: the Spreader is 1/4" thick not 3/16" as indicated on drawing

Gerbers

Pictures

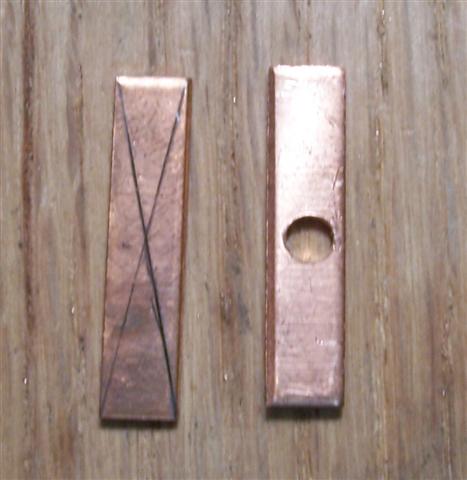

  Flange Strip Marked and drilled

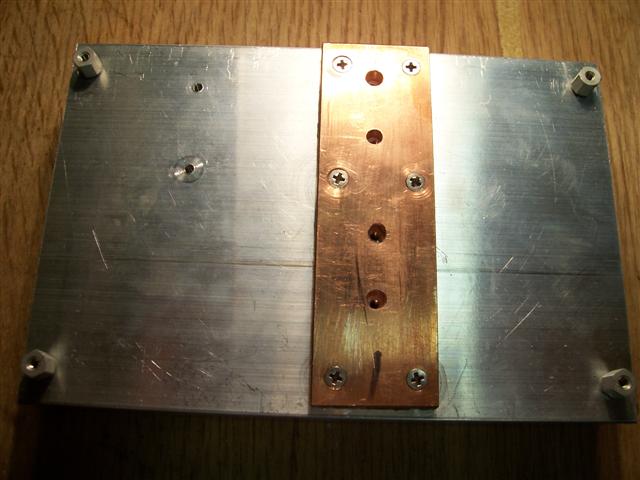

  Heatsink with Heat spreader and 1/4" spacers

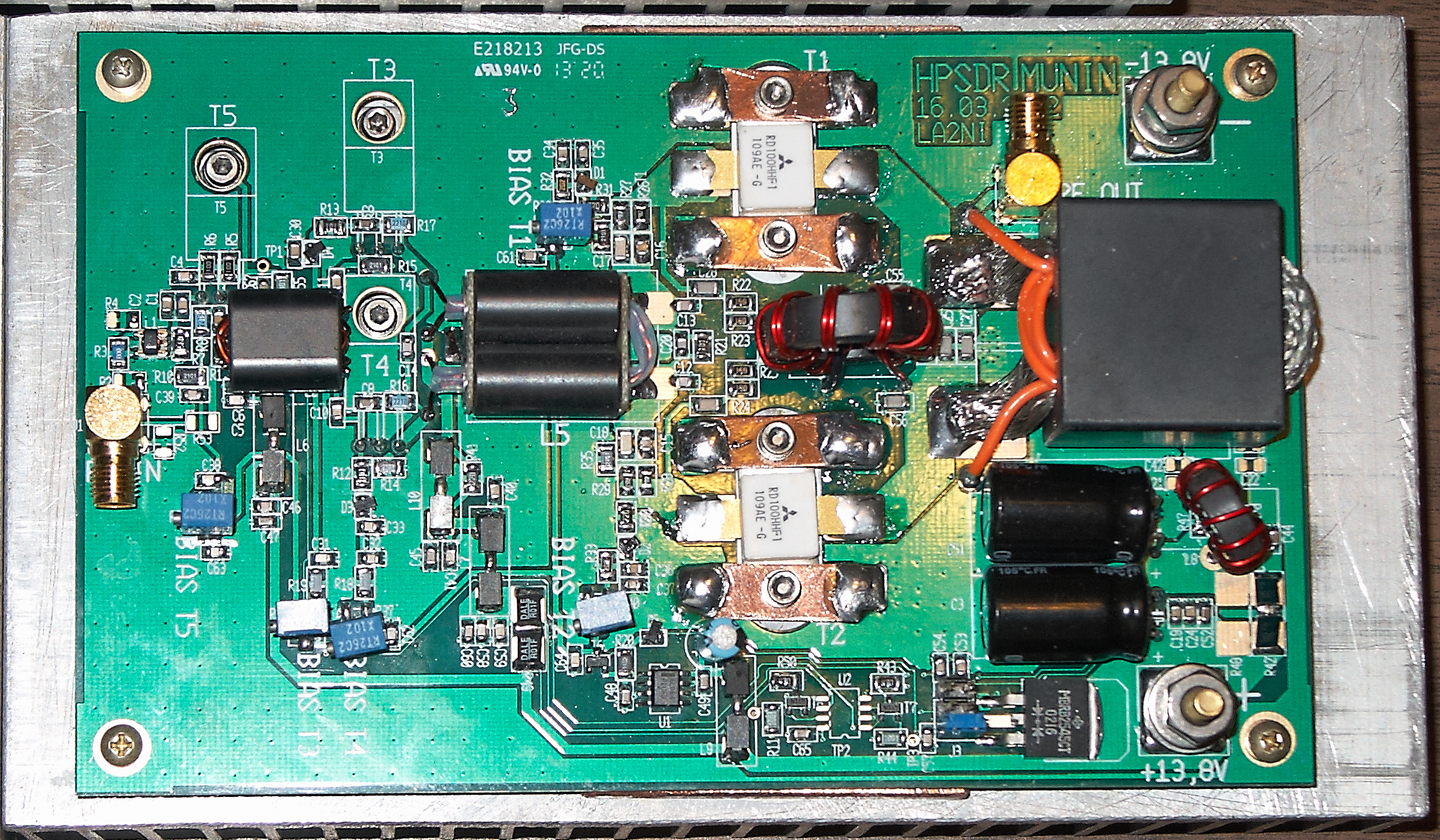

KF4BQ Built up a complete Munin2 from his own Parts supply
so some of the parts below are not the same as the BOM
For a full size picture click here

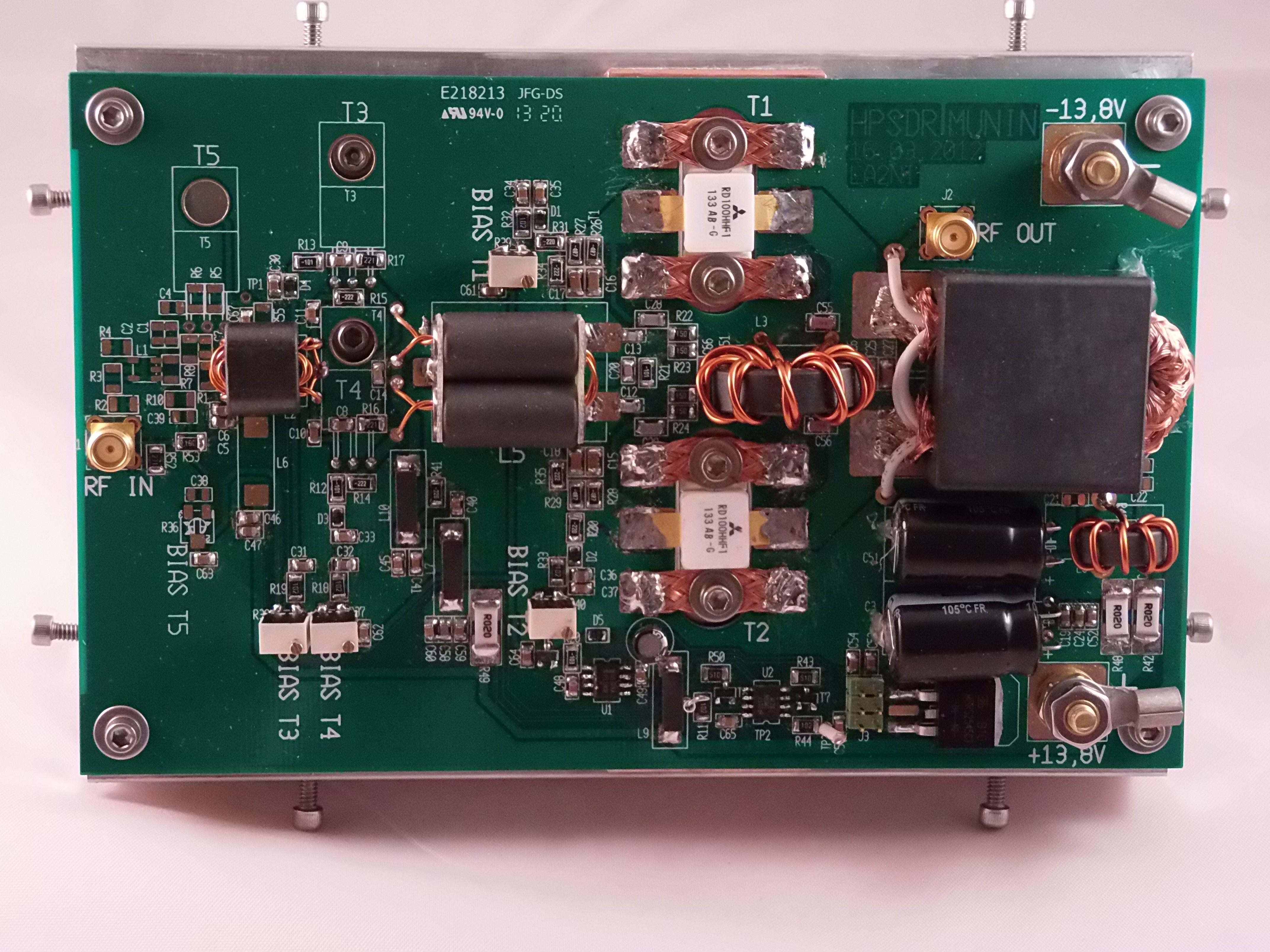

One of Kjell's  Munin2 Boards

For a full size picture click here

Munin Tests from Kjell
Munin Tests.zip

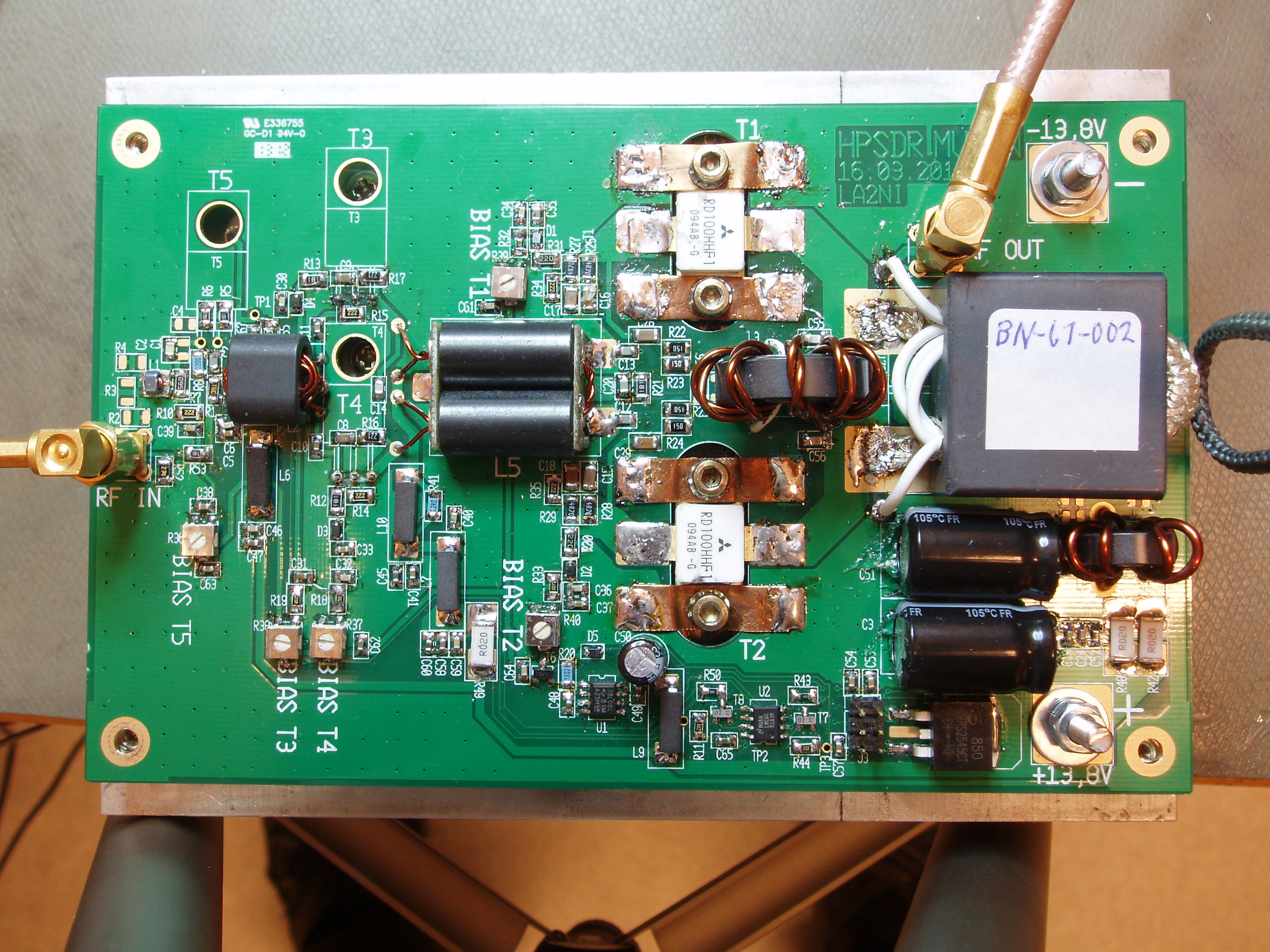

K9IVB's Board
With Belden 9258 RG-8X braid used on L4 and ground straps

For a full size picture click here



Another project that is going to work with Munin 2 or Pennywhistle
that allows me to use my HF Projects LPF-100  Low Pass Filters
Alternate_Alex_Interface_Ver6.2.pdf

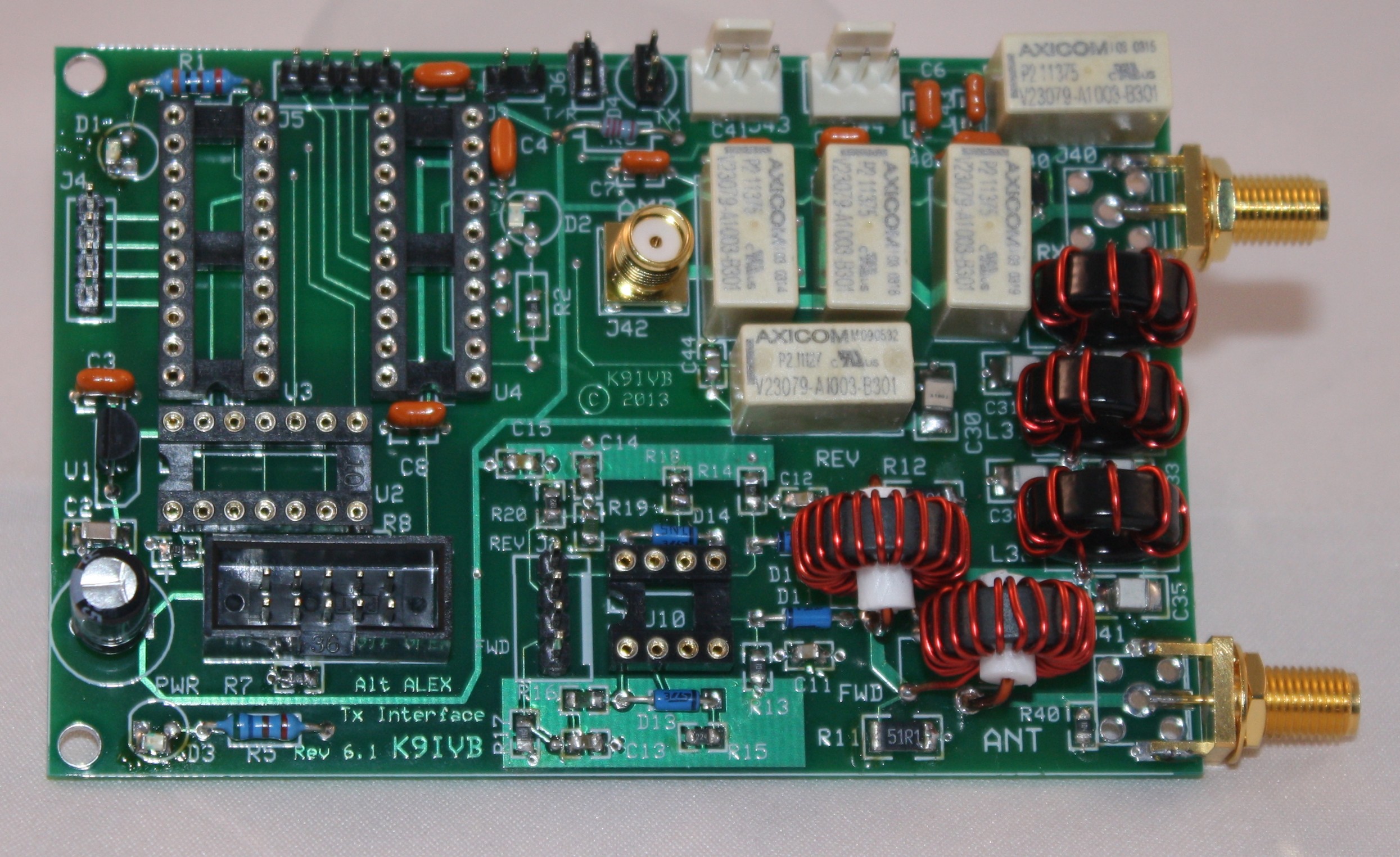

Alternate Alex TX Full Size Pix

Revised TX Gerbers as of 6/16/2015 [zip format]

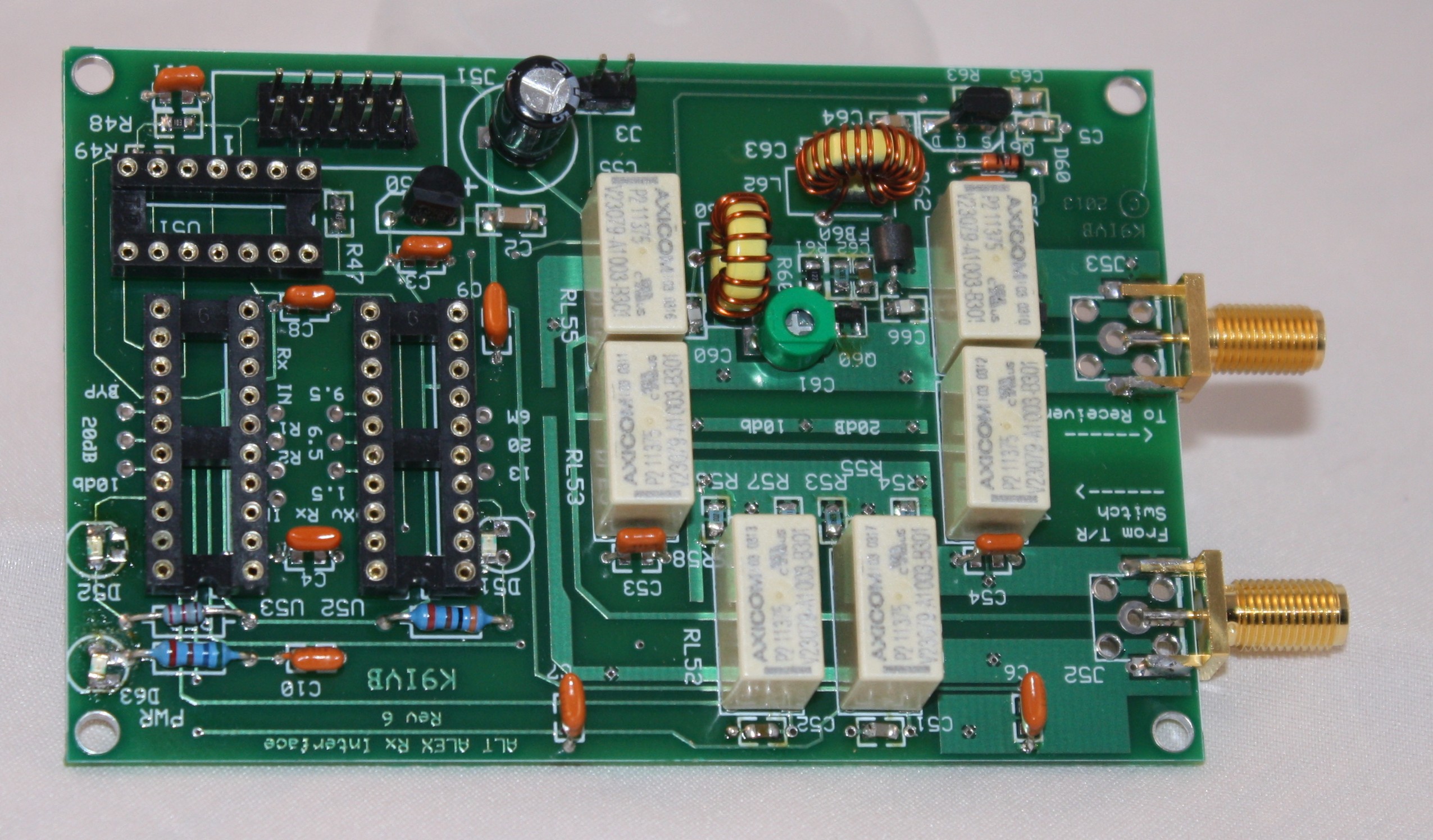

Alternate Alex RX Full Size Pix

Revised RX Gerbers as of 11/28/2014 [zip format - C7 moved]
